MacBook Pro Tandem OLED Explained: PROLED XDR vs Mini-LED

For the longest time, there were a few things I never expected Apple to do. A foldable iPhone was one of them, and a touchscreen MacBook was certainly another. Yet here we are, in October 2026, and Apple has managed to tick both off the list.

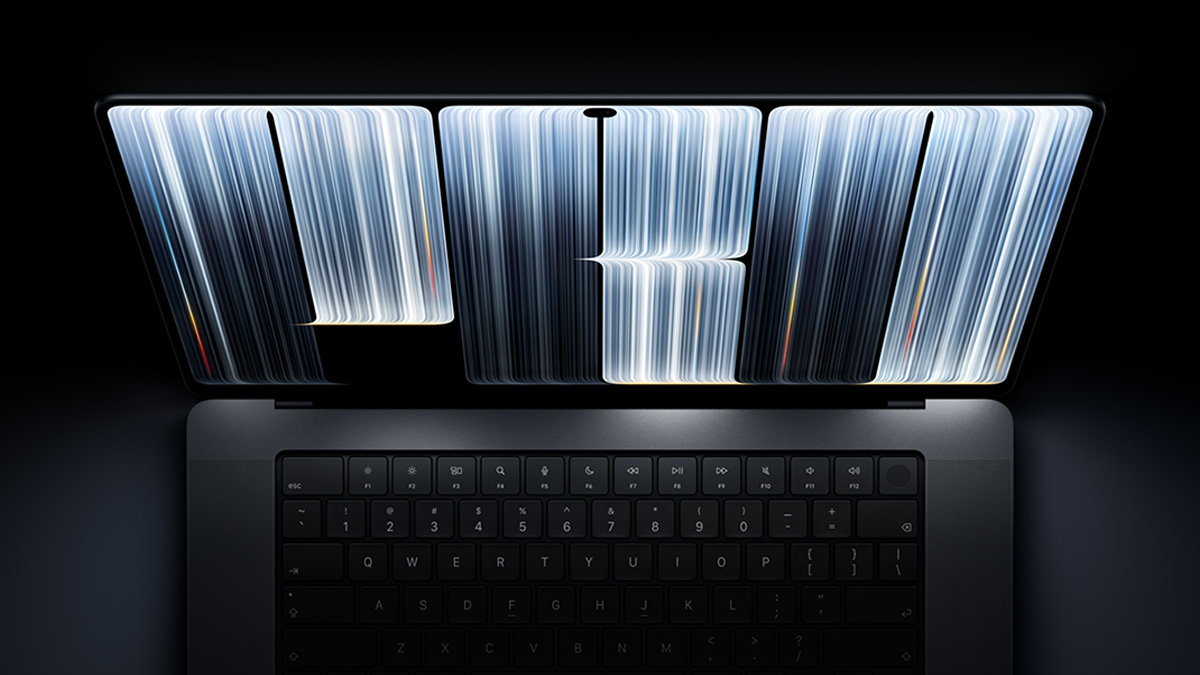

The company unveiled its new MacBook Pro with PrOLED XDR Display yesterday, and for the first time, you can actually reach out and touch your Mac's screen to get things done. That's a pretty big change for a company that spent well over a decade explaining why touchscreens had no place on laptops.

But while everyone seems fascinated by the arrival of touch, there's something else about this MacBook Pro that has caught my attention. It's the display itself.

Apple has finally moved away from the mini-LED technology we've seen on MacBook Pro models for years, replacing it with a new tandem OLED panel. And considering how good the previous Liquid Retina XDR displays already were, I was curious to understand what Apple could possibly improve.

MacBook Pro's PrOLED XDR Display Explained

What's new with the MacBook Pro?

Apple's new MacBook Pro comes in two sizes, 14 and 16 inches, powered by the M5 Pro and M5 Max chips. There's a thinner and lighter chassis, up to 128GB of unified memory, storage configurations going all the way up to 16TB, and a claimed battery life of up to 24 hours. You also get Wi-Fi 7, Thunderbolt 5, an improved six-speaker audio system, and the return of the illuminated Apple logo that we haven’t seen for a while.

There's also a Dynamic Island sitting at the top of the display, bringing features like Live Activities, Spotlight, and Siri AI to the Mac. But the feature that's understandably getting all the attention is touch. You can now scroll through websites, pinch to zoom into photos, move windows around, and interact directly with creative applications.

MacOS has received changes to make certain controls easier to interact with using your fingers. The keyboard and trackpad aren't going anywhere, so touch is simply another way of using the device. But there's a lot more happening with the display than just the ability to poke at it.

What exactly is tandem OLED, and why does it matter?

Before we get into tandem OLED, it's worth understanding what Apple is replacing. The previous MacBook Pro uses a Liquid Retina XDR display based on mini-LED technology, and I'd argue that it was already among the better laptop displays out there. You get excellent brightness, accurate colours, good HDR performance, and a 120Hz refresh rate.

The thing with mini-LED is that, despite the name, it's still an LCD display. It uses thousands of tiny LEDs behind the panel to illuminate the image, with groups of these LEDs controlled through local dimming zones. This improves contrast considerably, but those zones still light up multiple pixels at once. Say you're watching a movie like Project Hail Mary, where the Hail Mary spacecraft stands out against the pitch-black backdrop of space. On a mini-LED display, you might notice a faint halo around the spacecraft rather than a clean separation between the bright ship and the darkness surrounding it.

OLED works differently. Every pixel produces its own light, so there's no separate backlight involved. When something needs to appear black, the corresponding pixels simply switch off. This gives you much better control over contrast, especially in scenes where bright and dark objects sit right next to each other.

Now, OLED itself isn't new, but conventional OLED panels have their own compromises. Maintaining high brightness for extended periods can be difficult, and the organic materials inside gradually degrade with use. That's also where concerns about permanent burn-in come from, particularly on laptops where the same menu bars, application windows, and editing timelines can remain visible for hours.

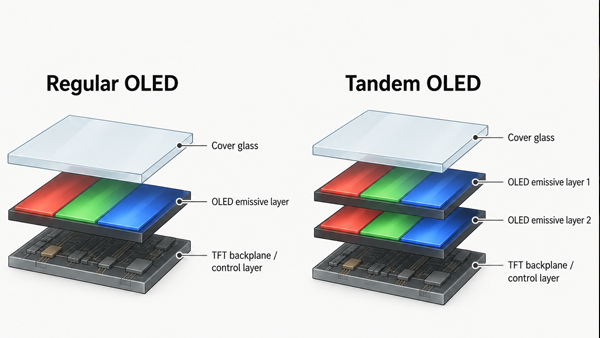

This is where tandem OLED comes in. Instead of using a single light-emitting layer, it stacks two emitting layers that work together to produce the light required by each pixel. Both layers share the workload, so neither has to work quite as hard to achieve the same brightness. The result is better power efficiency, higher peak brightness, and potentially a longer panel lifespan. In other words, it addresses some of OLED’s biggest weaknesses without giving up the advantages that make it so appealing.

Photo Credit: Made with AI

Tandem OLED panels have been around for a while now. Apple introduced tandem OLED on the iPad Pro back in 2024, and other manufacturers have been experimenting with it too. ASUS offers a tandem OLED touchscreen on its ExpertBook Ultra, while Lenovo has brought the technology to the Yoga Pro 9i Aura Edition. I also remember seeing Alienware's tandem OLED gaming monitors at Computex earlier this year. The 39-inch AW3926QW, for instance, uses an RGB-stripe tandem OLED panel.

So, Apple's contribution isn't the idea of stacking two OLED layers. It's what the company has done around the panel to make it suitable for a professional laptop.

According to Apple's technical paper, PrOLED XDR (a fancier word for OLED) uses a full oxide transistor layer to control the current supplied to individual pixels. There's also a dedicated display engine built into the M5 Pro and M5 Max chips, which continuously adjusts pixel behavior based on the content, usage history, temperature, and ambient conditions.

That could partly explain why Apple hasn't used the M6 chip, which still uses mini-LED and misses out on touch. Of course, Apple hasn't confirmed whether this is a technical limitation or simply a way to differentiate its products, but for now, it certainly looks like the company is keeping touch exclusive to its more expensive Pro and Max models.

So, OLED pixels don't all age at the same rate. If certain pixels have been displaying bright, static elements for long periods, they can gradually become less bright than the surrounding pixels. Apple's display engine compensates for these differences, while factory calibration helps maintain consistent brightness and colour across the panel. It should reduce the risk of burn-in, although I wouldn't take that to mean burn-in is suddenly impossible.

The brightness figures are interesting as well. The previous mini-LED MacBook Pro could reach 1,600 nits of peak HDR brightness, whereas the new tandem OLED panel pushes that to 2,000 nits, a 25 percent improvement. Apple also claims 1,000 nits of sustained full-screen brightness for SDR and HDR content under specified conditions, along with up to 2,000 nits for SDR content in particularly bright outdoor environments. Just a reminder that peak brightness isn't the same as the brightness the entire screen can maintain continuously.

Apple also quotes a 10 million:1 contrast ratio, compared with 1 million:1 on the previous mini-LED display. Colour accuracy is another area where Apple has made changes. The new panel supports both P3 and Adobe RGB colour gamuts in a single preset, covering more shades of green and cyan than P3 alone. There's also 81 percent coverage of the wider BT.2020 colour space, professional reference modes, and improved calibration. Apple has worked on reducing reflections within the panel too, with an antireflective coating on the standard glass and an optional nano-texture finish.

So, what does all of this mean if you're actually working on the laptop? Well, if you're a photographer, the wider colour coverage should help when editing thumbnails and other images.

For video editors, the improved contrast and brightness should make it easier to judge HDR highlights, while motion graphics designers could benefit from more accurate colours and smoother gradients when working on animations. Of course, there are dedicated professional monitors out there that offer even better colour accuracy and calibration. But if you are on the move, this should suffice.

Steve Jobs thought touchscreen laptops were a terrible idea. So, what changed?

This is probably my favourite part of the entire announcement, because Apple has spent so many years explaining why touchscreen MacBooks weren't a good idea. Back in October 2010, Steve Jobs argued that vertical touch surfaces were uncomfortable to use for extended periods. Repeatedly reaching forward to tap the screen would eventually tire your arm, which is why Apple preferred large multitouch trackpads. He famously described the experience as "ergonomically terrible."

And I have to say, I don't entirely disagree with him. I've used plenty of touchscreen Windows laptops over the years, and while I appreciate having touch available, I rarely find myself using it for extended periods. When I'm writing, editing something, or jumping between a dozen browser tabs, my hands naturally stay on the keyboard and trackpad. Reaching up to the display every few seconds simply doesn't feel particularly comfortable.

But I've also never been against having a touchscreen on a laptop. Sometimes it's easier to tap a button, scroll through a document, or zoom into a photograph using your fingers. It's a convenience I appreciate when it's there, but I wouldn't go out of my way to buy a laptop just because it has a touchscreen, especially one that starts at nearly Rs 3.5 lakh.

What interests me more is the timing. John Ternus has only recently taken over as Apple's CEO, and we've already seen two products arrive that challenge some of the company's longest-held ideas. The iPhone Duo finally brought Apple into the foldable smartphone market (albeit with a few problems), and now the MacBook Pro has gained a touchscreen after years of resistance.

Still, there's something refreshing about seeing Apple become a little more open to ideas it once dismissed. For years, the company seemed content with refining familiar products, and while that's worked incredibly well, I do miss seeing manufacturers take bigger swings with their hardware. I'm not going to replace my laptop just because I can tap its display (especially at that price), but I am curious to see what Apple does next under Ternus. If the Duo and this MacBook Pro are any indication, the next few years could be a lot more interesting.
