AMD Radeon RX 5600 XT GPU Review: Efficient And Sufficient For 1080p Gaming

|

CES 2020 witnessed the launch of AMD's latest mid-tier GPU - the Radeon RX 5600 XT, which is a desktop-class graphics card made for top-tier 1080p gaming. Similarly, the Radeon 5600 was also announced, which is only available for OEM partners along with the Radeon 5600M, which is a mobile GPU.

Rating:
4.0/5

AMD Radeon RX 5600 XT GPU Review: Efficient And Sufficient



Unlike the Radeon RX 5500 XT (meant for entry-level gamers), the Radeon RX 5600 XT claims to offer the best possible 1080p gaming experience at the highest graphics quality on most AAA titles. The company claims that the Radeon RX 5600 XT offers better performance compared to NVIDIA's GTX 1660 Ti and the GTX 1060. Is this really a good graphics card for 1080p gaming? Let's find out.

Hardware Specifications

Hardware Specifications

  • Compute Units: 36
  • Stream Processors: 2304
  • Peak Performance: 7.19 TFLOPS (up to)
  • Game Clock: in MHz (up to)1375
  • BoostClock: in MHz (up to)1560
  • Memory: 6GB GDDR6
  • Memory Speed: 12 Gbps
  • Memory Interface: 192bit/s
  • Total Board Power: 150W
 System Configuration

System Configuration

  • Operating System: Windows 10 Pro 64-bit
  • CPU: 7th Gen Intel Core i7-7700 Quad-Core @3.6GHz
  • RAM: HyperX Fury 16GB (8GBx2) 2133MHZ DDR4
  • Storage: WD Green 120GB Internal SSD
  • Motherboard: Asus Prime 7270-K
  • Power Supply: Corsair VS650
  • Thermal Solution: Corsair H60
Radeon 5500 XT Vs Radeon 5600 XT


Radeon 5500 XT Vs Radeon 5600 XT

It might look like the Radeon 5500 XT has more video memory with higher memory speed and higher clock speed. However, this is just one part of the story. Compared to the 128bit memory interface on the Radeon 5500 XT, the Radeon 5600 XT is based on a 192bit memory interface. Similarly, the Radeon 5600 XT also has more computing units and more stream processors.

The Radeon 5500 XT offers a peak performance of 5.2TFLOPs, whereas the Radeon 5600 XT has a peak performance of 7.19TFLOPs, and the same can be seen when we compared to benchmark results of these GPUs. The Radeon 5500 XT retails for Rs. 14,990 (without tax), whereas the Radeon 5600 XT retails for Rs. 19,990 (without tax), making a price difference of Rs. 5,000.

What's New?

What's New?

The Radeon 5600 XT is based on Navi architecture and is manufactured using the 7nm manufacturing process. The GPU has a total of 10.3 billion transistors and comes with a TDP of 150W. Thanks to the efficient architecture, the GPU uses less power compared to other GPUs built on the old manufacturing process.

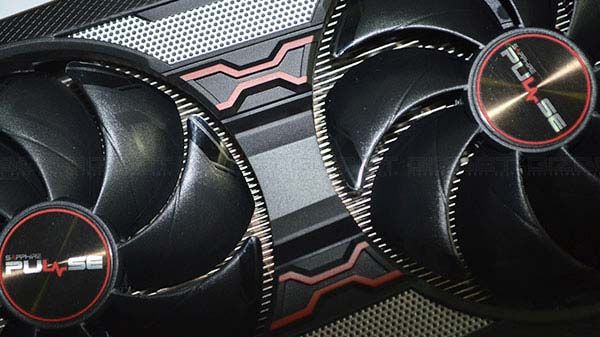

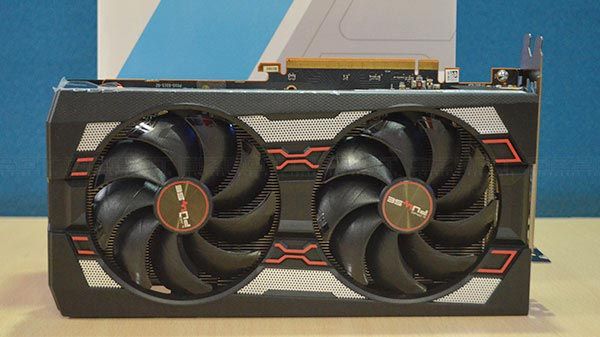

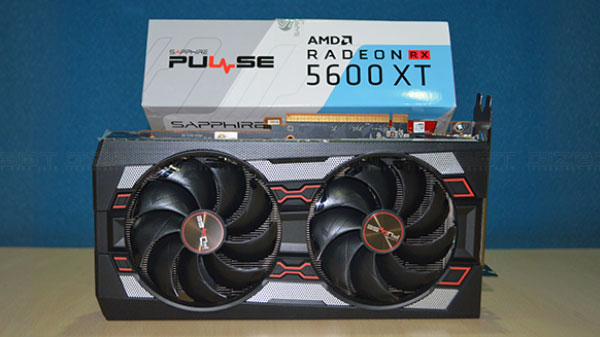

There will be no reference Radeon 5600 XT GPU. Instead, it will be available via multiple vendors. The GPU that I reviewed is from sapphire and it comes with dual fan design for improved thermal efficiency. This is also one of the first GPUs to support AMD Freesync 2 HDR technology out-of-the-box.

Build and Design?

Build and Design?

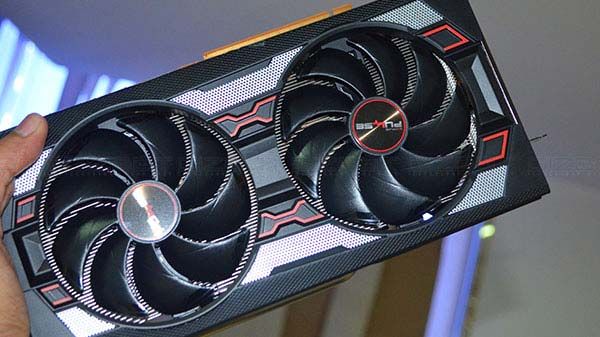

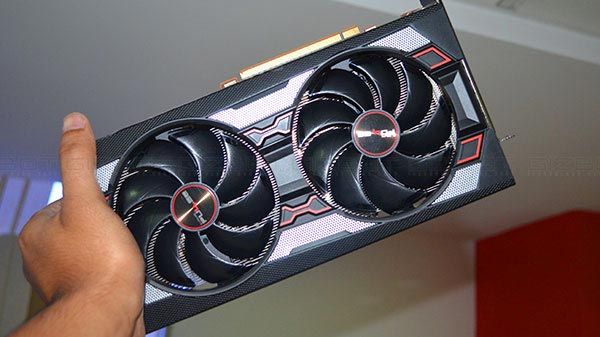

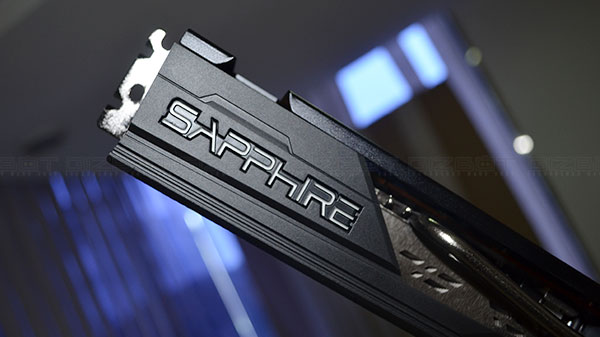

This GPU can be easily used with a tower-style PC without any issue. It has three display ports and a single HDMI port with six-pin power input. The build-quality from sapphire might be an issue, as the plastic used on the outer casing feels flimsy and fragile, including the dual coolers.

Benchmark Performance

Benchmark Performance

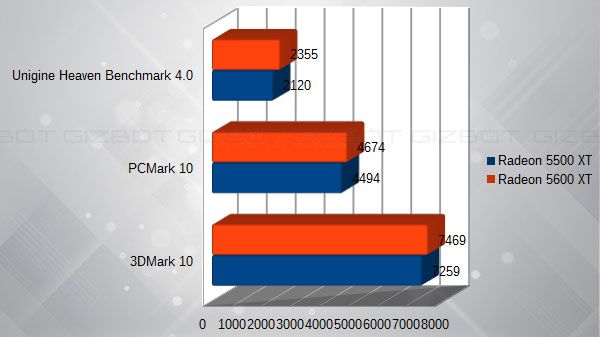

We ran various GPU benchmarking tests like the Unigine Heaven 3D, PC Mark 10, and 3D Mark 10 and here are the results of the same. Do note that these software are based on different standards. We have also compared these results with the Radeon RX 5000 XT for an in-depth analysis.

Gaming Performance

Gaming Performance

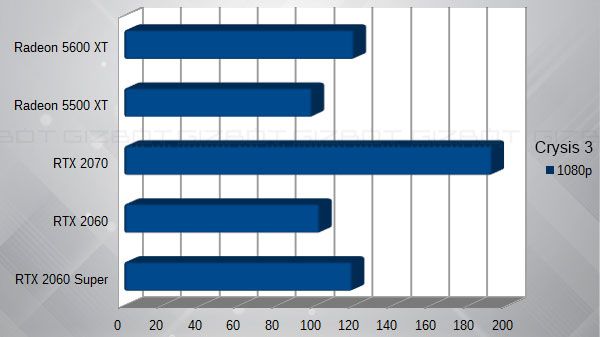

We also tested different games, including some newly launched AAA titles, and some of the cult games like Crysis 3. Here is an in-depth comparison of the gaming performance of the Radeon 5600 XT compared to its contemporaries.

It comes with a TDP of 150W, which is slightly higher than the TDP of Radeon 5500 XT. So, make sure that your PC has a capable SMPS that will be capable of driving this GPU.

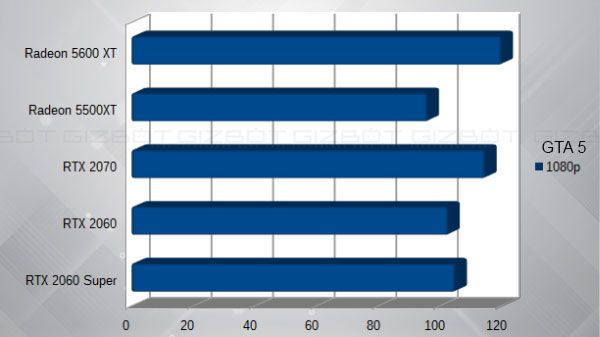

 GTA: V Gaming Performance

GTA: V Gaming Performance

The Radeon 5600 XT did handle the GTA: V pretty well as well. The game ran pretty smooth for the most part, frame rates going up to 160 at times. One can really enjoy playing GTA: V with this GPU.

 NFS Payback Gaming Performance

NFS Payback Gaming Performance

The GPU performed handsomely even on NFC Payback even at the highest quality graphics settings. The frame rate ranged anywhere from 106fps to 140fps, depending on the scene.

 Division 2 Gaming Performance

Division 2 Gaming Performance

On Division 2, the GPU offered a good gaming performance. This is one of the recent titles that we tested and is based on DirectX 12. We noticed an average FPS of around 102 at the highest graphics settings, which is good for those who have a monitor with a higher refresh rate.

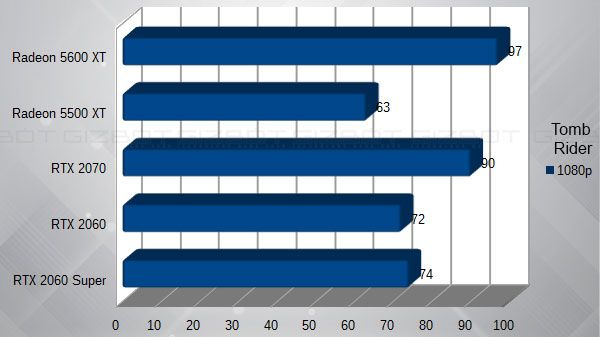

 The Shadow Of The Tomb Raider Gaming Performance

The Shadow Of The Tomb Raider Gaming Performance

The Shadow Of The Tomb Raider is one of the most demanding games. Even on this title, the Radeon 5600 XT performed well and easily offers an average FPS of 97, which is a good figure considering the price of the GPU.

 Conclusion: Future Proof 1080p Gaming GPU

Conclusion: Future Proof 1080p Gaming GPU

Do note that even the Radeon 5500 XT handled these games pretty well, offering over 60fps of performance. Compared to the Radeon 5500 XT, the Radeon 5600 XT offers up to 25 to 30 percent better performance in almost all games.

If you want to get the best possible gaming experience at 1080p and planning to buy new games coming in the next few years, then this is the GPU that you should get, as it can easily handle even the upcoming titles without any issue.
